Comp Turbo CT3RX-5858 Oil-Less Air-Cooled Turbo — .82 A/R V-Band

Built to order — ships directly from Comp Turbo. Comp Turbo quotes a typical production time of 2–3 weeks; confirm current availability and delivery timing with Monster Turbos before ordering.

The Comp Turbo CT3RX-5858 uses an air-cooled, oil-less triplex ceramic bearing system, eliminating engine oil and coolant plumbing. Manufacturer-rated power range: 400–775 HP.

Selected configuration

• SKU: 325858-4+348258-7
• .82 A/R stainless steel turbine housing with V-band inlet and outlet
• Satin compressor housing; Standard turbine housing finish; Billet cartridge finish

Specifications

• Compressor wheel: 58 mm inducer / 81 mm major diameter
• Turbine wheel: 65 mm inducer / 58 mm exducer
• Compressor housing: 3-inch inlet, 2-inch outlet, .60 A/R
• Pressure connection: 1/8 NPT
• Standard rotation; manufacturer-listed weight: 12 lb

Installation and care

Comp Turbo recommends mid/remote mounting for street use; engine-bay installation is recommended for 1/8–1/2-mile racing only. Regular grease servicing is required. Review the manufacturer installation guide before fitting.

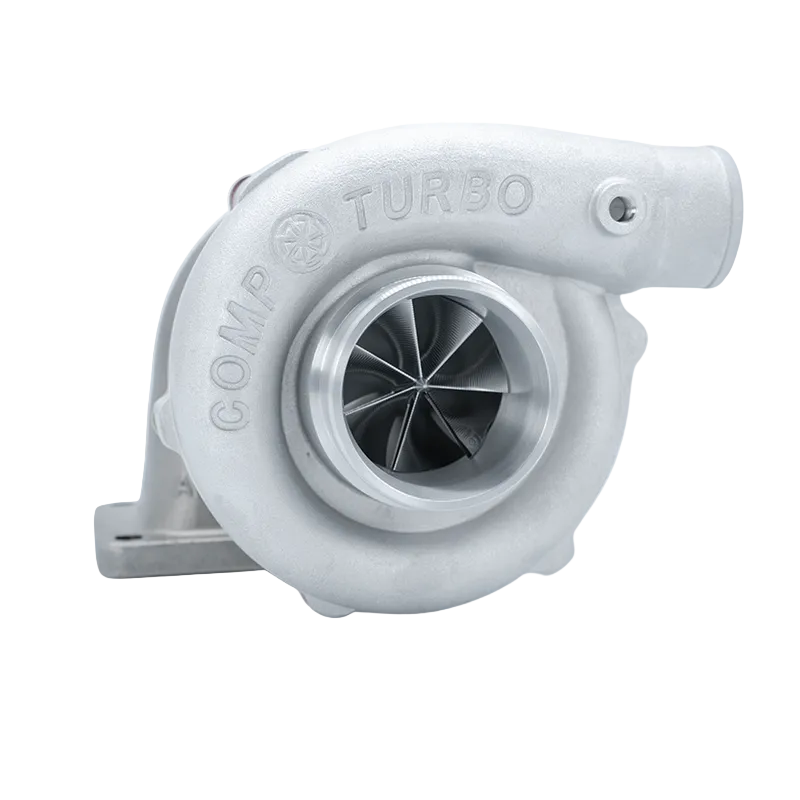

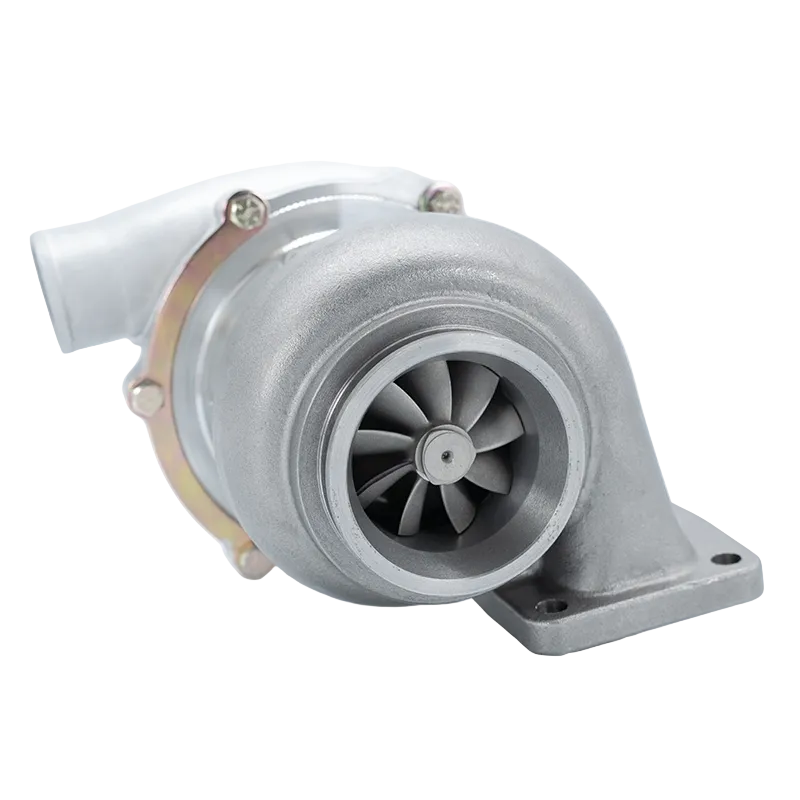

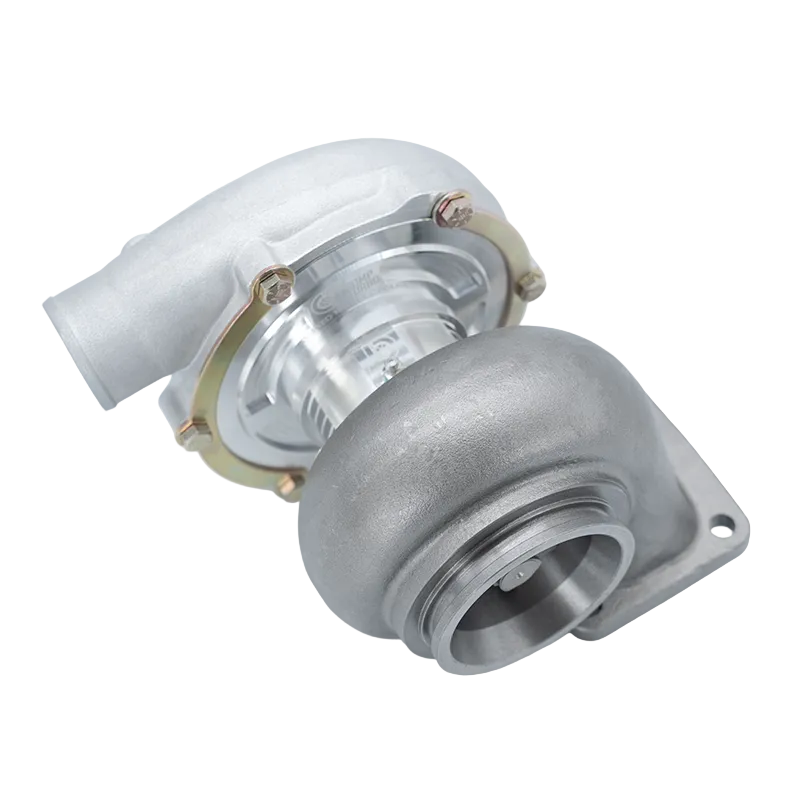

Photo reference: Manufacturer photos show a T3 housing. This listing specifies the .82 A/R V-band configuration above.
